VIC-3D 11.2.6 by Correlated Solutions – Ultimate 3D Digital Image Correlation (DIC) Software for Strain, Deformation & Motion Analysis
Revolutionizing Experimental Mechanics with Next-Generation Full-Field Optical Measurement
VIC-3D 11.2.6 is the newest and most advanced release of the world-renowned Digital Image Correlation (DIC) platform developed by Correlated Solutions. Designed for high-precision 3D strain measurement, deformation analysis, vibration testing, motion tracking, and finite element validation, VIC-3D continues to lead the experimental mechanics industry with groundbreaking visualization tools, powerful Python automation, ultra-fast processing, and unmatched measurement accuracy.
Used by engineers, researchers, universities, aerospace manufacturers, automotive companies, defense laboratories, and scientific institutions worldwide, VIC-3D transforms stereo camera images into highly detailed full-field deformation and strain data in real time.

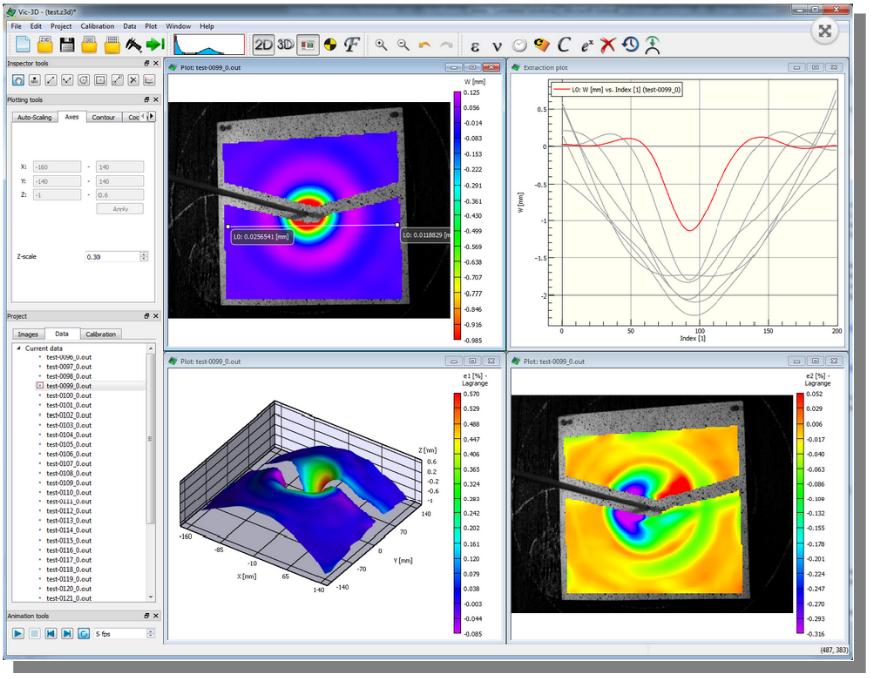

Modern VIC-3D Analysis Workspace
The latest VIC-3D platform introduces a highly refined DIC analysis environment with improved workflow customization, enhanced plotting, faster rendering, and professional reporting capabilities.
The redesigned workspace powered by the advanced iris graphics engine provides:
- Interactive 2D & 3D visualization
- High-resolution contour plotting
- Real-time displacement mapping
- Advanced strain analysis tools
- Publication-quality rendering
- Integrated animation creation
- Dynamic reporting workflows
- Direct FEA comparison overlays
What Is VIC-3D?
VIC-3D is a complete non-contact optical metrology solution based on stereo Digital Image Correlation technology. Using synchronized high-resolution cameras and a stochastic speckle pattern, the software accurately tracks surface motion and deformation at every pixel.
Unlike traditional strain gauges or extensometers, VIC-3D captures:
- Full-field 3D displacement
- Surface strain distribution
- Shape changes
- Dynamic motion
- Vibration behavior
- Crack propagation
- Thermal deformation
- Impact mechanics
All measurements are performed without touching the specimen.
New Features in VIC-3D 11.2.6
Expanded VIC-PYX Python Framework
One of the biggest upgrades in version 11.2.6 is the massive expansion of the VIC-PYX Python scripting environment.
The new framework allows engineers and researchers to:
- Execute Python scripts directly inside VIC-3D
- Automate repetitive workflows
- Process thousands of images automatically
- Create custom strain calculations
- Export scientific datasets
- Apply coordinate transformations
- Generate advanced engineering metrics
- Integrate AI and machine learning workflows
This dramatically improves productivity for research laboratories and industrial testing facilities handling large experimental datasets.
Next-Generation iris Visualization Engine
The powerful iris graphics workspace continues to evolve in VIC-3D 11.2.6 with smoother rendering, better animation controls, and ultra-high-resolution export support.
New iris capabilities include:
- Adaptive motion blur animations
- 4K UHD video export
- High-resolution PDF plot generation
- Multi-threaded rendering engine
- Scalable Unicode labels
- 3D speckle visualization
- Synchronized analog data plotting
- Improved contour visualization
- Realistic deformation animations
These tools make VIC-3D ideal not only for analysis but also for scientific presentations, publications, and professional reporting.
Advanced Full-Field Strain Visualization
VIC-3D can generate extremely detailed full-surface strain and displacement maps for virtually any type of engineering test.
The software supports:
- Principal strain analysis
- Von Mises strain
- Shear strain mapping
- Crack initiation monitoring
- Real-time deformation visualization
- Multi-camera stitching
- 360° integrated measurement
- Large structure deformation analysis
Ultra-Fast DIC Processing Performance
Correlated Solutions optimized VIC-3D 11.2.6 for modern high-core-count processors.
The software now supports:
- Massive multi-threaded computation
- Faster image correlation
- Reduced analysis time
- Improved memory management
- Large dataset optimization
- Real-time high-speed analysis workflows
According to Correlated Solutions, modern 32-core CPUs can process:
- Up to 1,000,000 points per second
This makes the platform ideal for:
- High-speed impact testing
- Ballistics research
- Fatigue analysis
- Vibration studies
- Long experimental sequences
Precision Measurement Capabilities
VIC-3D is recognized globally for its exceptional measurement accuracy.
Typical capabilities include:
- Nanometer displacement sensitivity
- 10–50 microstrain resolution
- Strain measurement above 2500%
- Specimen sizes from <1 mm to >100 m
- High-speed acquisition up to 5,000,000 FPS
The system works without:
- Laser scanning
- Physical sensors
- Contact probes
- Special lighting systems
The result is highly flexible and accurate deformation analysis across virtually any engineering environment.
Powerful FEA & DIC Integration
VIC-3D 11.2.6 introduces enhanced workflows for comparing:
- Experimental DIC measurements
- Finite Element Analysis (FEA) simulations
The software supports:
- Direct FEA mesh import
- Node-level comparison
- Overlay visualization
- Multi-physics validation workflows
- Forming Limit Curve (FLC) analysis
- VTK data integration
This is extremely valuable in:
- Aerospace structural validation
- Automotive crash simulations
- Composite material research
- Metal forming analysis
- Mechanical design optimization
High-Speed & Dynamic Event Analysis
VIC-3D is extensively used for ultra-fast deformation studies and dynamic mechanical events.
Supported applications include:
- Ballistics testing
- Explosive deformation
- Drop testing
- Sports impact studies
- Airbag deployment
- Vibration measurement
- Modal analysis
- Structural resonance studies
Compatible camera ecosystems include:
- Phantom
- Photron
- FLIR
- Basler
- Allied Vision
- Shimadzu
Specialized VIC-3D Systems
Correlated Solutions offers multiple VIC-3D configurations for specialized applications.
Available system categories:
- Quasi-Static Systems
- High-Speed Systems
- Ultra High-Speed Systems
- Stereo Microscopy DIC
- Infrared / Thermal DIC
- Vibration & FFT Systems
- Multi-Camera Systems
- Shearography Systems
- Blue Falcon Micro-DIC
Industries Using VIC-3D
Aerospace Engineering
- Composite structure validation
- Fatigue testing
- Thermal expansion analysis
- Aircraft component certification
Automotive Industry
- Crash safety testing
- Battery deformation analysis
- Chassis strain mapping
- Airbag deployment studies
Biomechanics & Medical Research
- Soft tissue mechanics
- Human motion analysis
- Orthopedic material testing
- Biomedical engineering
Civil & Structural Engineering
- Bridge monitoring
- Structural vibration analysis
- Crack propagation studies
Manufacturing & Materials Science
- Sheet metal forming
- Additive manufacturing validation
- Weld distortion analysis
- Fracture mechanics research
System Requirements for VIC-3D 11.2.6
Recommended Operating System
- Windows 10 64-bit
- Windows 11 64-bit
Recommended Hardware
- Intel Core i7 / i9 or AMD Ryzen / Threadripper
- 32 GB RAM minimum
- 64 GB+ recommended for large projects
- NVIDIA RTX/OpenGL compatible GPU
- SSD storage for high-speed image sequences
Recommended Camera Interfaces
- USB 3.0
- GigE Vision
- FLIR Spinnaker SDK
- Allied Vision Vimba
Improvements & Bug Fixes in Version 11.2.6
The latest 11.2.6 update focuses heavily on:
- Stability optimization
- Improved rendering responsiveness
- Better large dataset handling
- Enhanced memory management
- Faster project loading
- Refined contour plotting
- More reliable Python integration
- Improved network licensing stability
- Better export reliability for UHD video rendering
- General UI performance improvements
Why VIC-3D Is an Industry Standard
VIC-3D is considered one of the most advanced and trusted Digital Image Correlation platforms because it combines:
Industry-leading DIC accuracy
Advanced iris visualization engine
Scientific-grade reporting tools
Real-time full-field measurement
Deep FEA integration
Powerful Python automation
Massive multi-core processing performance
Excellent technical support
Strong academic reputation
Flexible hardware ecosystem
The company behind VIC-3D, Correlated Solutions, is also recognized as one of the pioneers of modern Digital Image Correlation technology itself.
VIC-3D 11.2.6 Technical Overview
| Feature | Details |
|---|---|
| Software Name | VIC-3D |
| Latest Version | 11.2.6 |
| Developer | Correlated Solutions |
| Platform | Windows 64-bit |
| Technology | Stereo Digital Image Correlation |
| Core Functions | Strain, deformation & motion analysis |
| Measurement Type | Non-contact optical metrology |
| Visualization Engine | iris |
| Python Support | VIC-PYX |
| Export Formats | PDF, Images, 4K UHD Video |
| Industries | Aerospace, Automotive, Research, Manufacturing |
Final Thoughts
VIC-3D 11.2.6 represents one of the most advanced Digital Image Correlation solutions available today. With expanded Python scripting, improved visualization powered by the iris engine, ultra-fast processing, professional reporting tools, and advanced FEA integration, the software continues to set the benchmark for full-field optical deformation analysis.
For universities, research laboratories, industrial testing centers, aerospace manufacturers, and automotive engineers seeking highly accurate non-contact strain and deformation measurement, VIC-3D 11.2.6 remains one of the most powerful and professional DIC platforms on the market.
